E-Gent / ASBGF
商品編號：ASBGF
E-Gent MY26
馬達系統: Bosch CX ( BDU38 )
電池: Bosch Powertube 800Wh (Horizontal)
輪胎: 700 x 55C (28 x 2.15)
新產品研發中
馬達系統: Bosch CX ( BDU38 )
電池: Bosch Powertube 800Wh (Horizontal)
輪胎: 700 x 55C (28 x 2.15)
新產品研發中

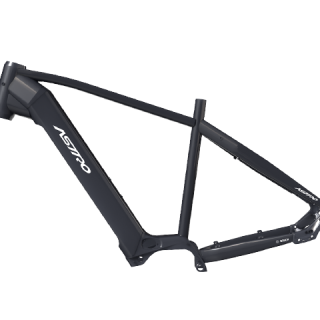

ASBGF
ASBGF 是一款精緻且強勁的電動自行車，搭載 Bosch CX (BDU38) 系統，提供順暢且高效的動力輔助。配備 Bosch Powertube 800Wh 電池，確保持久續航力；700x55C（28x2.15）輪胎帶來穩定且舒適的騎乘體驗。專為城市通勤及多元用途設計，完美融合風格、動力與可靠性。
| System | BOSCH Drive BDU38 CX | |
| Battery | BOSCH Powertube 800Wh (Horizontal) | |
| Travel | 65 mm | |
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 142 mm Shimano | |
| Tire | 700 x 55 C ( 28 x 2.15 ) | |
| Direct Mount | 160 mm | |
| Boost Crankset | 38T Max by FSA | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
46T ( Belt Chainline 46.45 mm ) 38T ( Chainline 47.55 mm ) |
|
| Size | 460 | 500 | 540 | 600 |
| TT Length (A) | 595 | 605 | 615 | 630 |
| Reach | 445.4 | 453.3 | 461.1 | 476.1 |
| HT Angle (B) | 69 | |||
| ST Angle (C) | 77 | |||
| Stack | 647.9 | 657.2 | 666.5 | |
| W.B (D) | 1163.7 | 1175.2 | 1186.6 | 1201.6 |
| RC (E) | 450 | |||
| BB Drop (F) | 65 | |||
| Fork Offset (G) | 46 | |||
| HT Length (H) | 165 | 175 | 185 | |
| FC | 721.4 | 732.8 | 744.1 | 759.1 |
