E-Wave / ASOEWB
商品編號：ASOEWB
E-Wave MY26
馬達系統: Oli-Pico
電池: Darfon E3C0H (531Wh)
輪胎: 700 x 55C (28 x 2.15)
新產品研發中
馬達系統: Oli-Pico
電池: Darfon E3C0H (531Wh)
輪胎: 700 x 55C (28 x 2.15)
新產品研發中

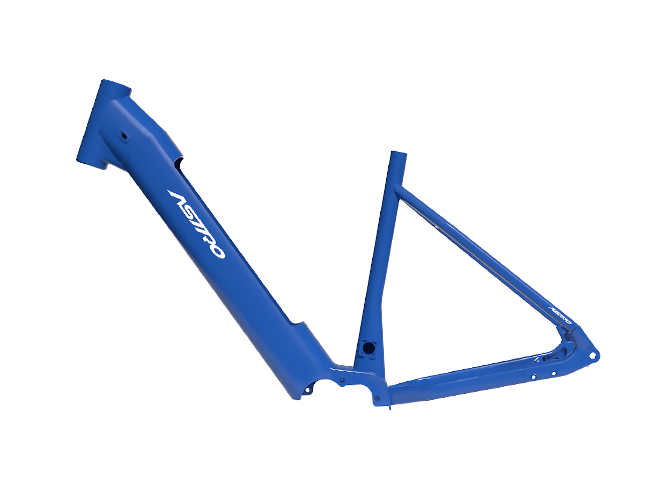

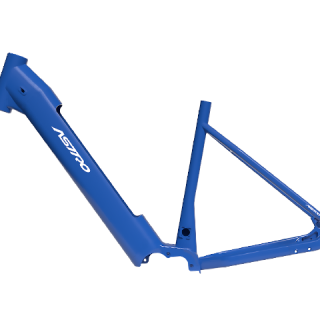

ASOEWC
ASOEWC 是一款時尚且高效的電動自行車，適合日常騎乘。搭載 Oli-Pico 系統，提供順暢且靈敏的輔助動力。配備 Darfon E3C0H 531Wh 電池，續航可靠；700x55C（28x2.15）輪胎則帶來穩定舒適的騎乘體驗。非常適合城市通勤與週末輕鬆遊玩。
| System | Oli-Pico | |
| Battery | Darfon E3C0H (531Wh) | |
| Travel | 65 mm | |
| Headset | 1.5” Taper ( 44 mm / 44 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 10 x 135 mm (QR type) | |
| Tire | 700 x 55 C ( 28 x 2.15 ) | |
| Direct Mount | 160 mm | |
| Boost Crankset | 44T ( Chainline : 50 mm ) | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
Motor-chamber : Die Casting |
|

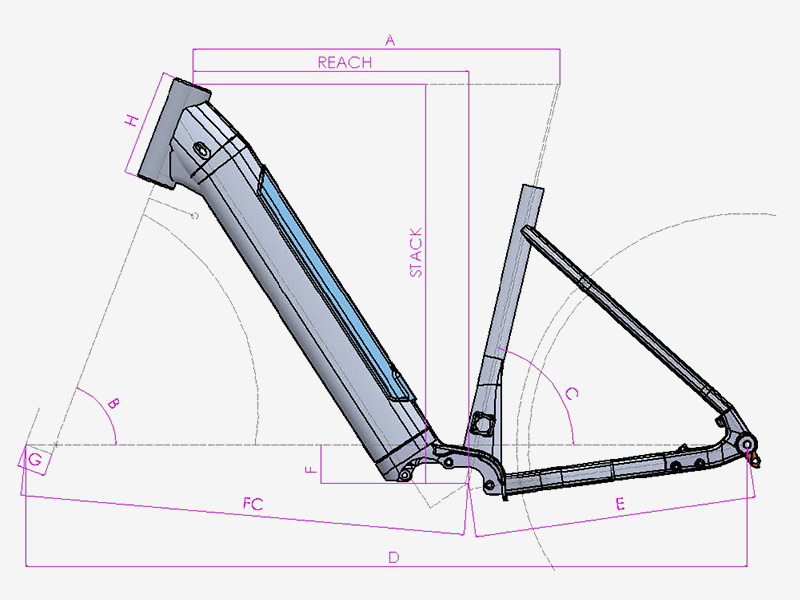

| Size | 500 | |||
| TT Length (A) | 605 | |||
| Reach | 453.3 | |||
| HT Angle (B) | 69 |
|||
| ST Angle (C) | 77 |
|||
| Stack | 657.2 | |||
| W.B (D) | 1185.3 | |||
| RC (E) | 460 |
|||
| BB Drop (F) | 65 |
|||
| Fork Offset (G) | 46 |
|||
| HT Length (H) | 175 |
|||
| FC | 732.8 | |||
