E-Fully / ASB1A9B
Product ID：ASB1A9B
E-Fully MY25
System: Bosch CX ( BDU38 )
Battery: Bosch Powertube 800Wh
Tire: 27.5x2.6” / 29x2.4” ( Diameter Max: 750mm )
Material: Thermoplastic Carbon
NEW PRODUCT IN PROGRESS
System: Bosch CX ( BDU38 )
Battery: Bosch Powertube 800Wh
Tire: 27.5x2.6” / 29x2.4” ( Diameter Max: 750mm )
Material: Thermoplastic Carbon
NEW PRODUCT IN PROGRESS

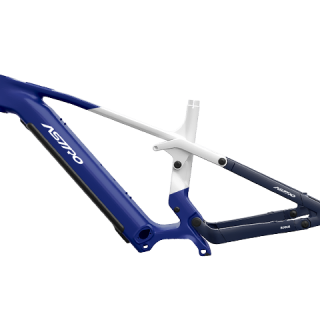

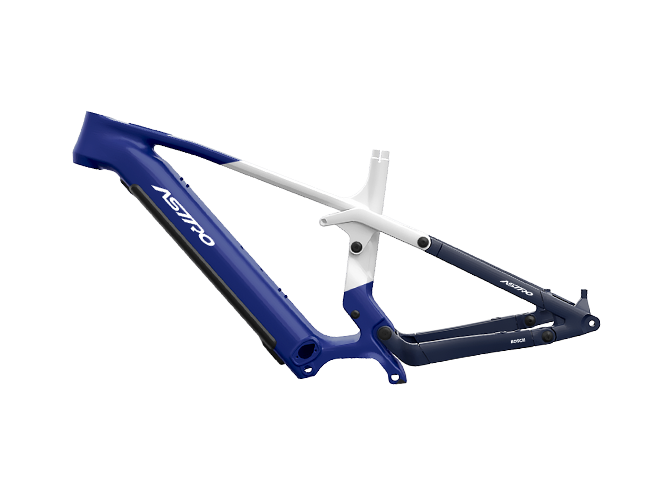

ASB1A9B

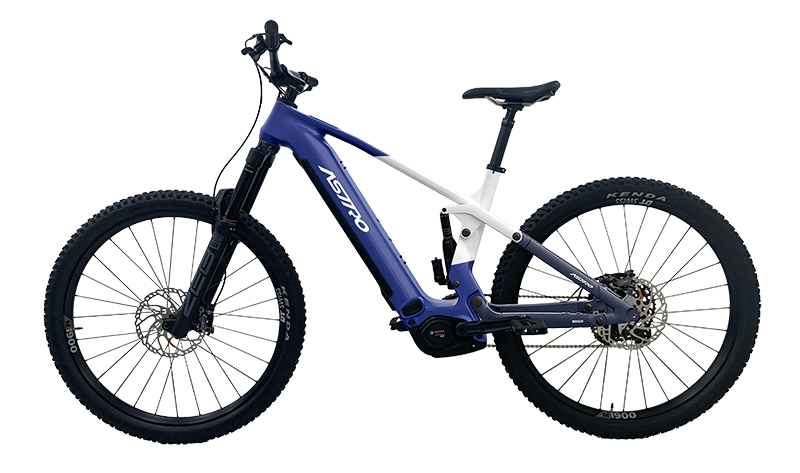

The ASB1A9B is a high-performance full-suspension e-mountain bike equipped with the Bosch CX drive system, delivering immediate and linear power assistance to confidently tackle steep climbs and technical terrain. Its frame is constructed from thermoplastic carbon fiber, achieving an optimal balance of lightweight efficiency, strength, and durability to meet the demands of aggressive off-road riding.
A Bosch 800Wh high-capacity integrated battery extends riding range and supports long-distance, high-intensity use. The platform is compatible with both 27.5 x 2.6" and 29 x 2.4" wheel configurations, combining agile handling with reliable traction to adapt to a wide variety of trail conditions.
| Suspension System | 27.5+ / 29 Enduro Bosch system | |
| System | Bosch Drive BDU38 CX ( Variant Wide ) | |
| Battery | BOSCH Powertube 800Wh ( Horizontal ) | |
| Fork / Wheel Travel | 6.3” ( 160mm ) | |
| Shock Spec | 205 x 60 mm Trunnion Shock Upper = 24 x ID8 mm / Lower = 54 mm |
|
| Headset | 1.5” Taper ( 56mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 148 ( M12 x P1.5 ) | |
| Tire | 27.5 x 2.8” / 29 x 2.6” ( Diameter Max: 726 mm ) | |
| Direct Mount | 180 mm | |
| Boost Crankset | 38T Max by FSA | |
| Material | Thermoplastic Carbon | |
| Manufacture Base | Taiwan | |
| Note | Leverage Ratio: 1 : 2.8 Chain Line: 53 mm Hanger: SRAM UDH |
|
| Size | 420 (SM) | 440 (MD) | 460 (LG) | 480 (XL) | |
| TT Length (A) | 595.99 | 620.99 | 647.19 | 678.4 | |
| Reach | 427 | 452 | 477 | 507 | |
| HT Angle (B) | 64 | ||||
| ST Angle (C) | 72.5 | ||||
| Stack | 630.68 | 635.17 | 639.67 | ||
| W.B (D) | 1229.05 | 1254.05 | 1281.24 | 1313.43 | |
| RC (E) | 460 |
||||
| BB Drop (F) | 28 |
||||
| Fork Offset (G) | 44 |
||||
| HT Length (H) | 110 | 115 | 120 | ||
| FC | 770.41 | 795.39 | 822.57 | 854.74 | |
