E-Longtail / ASBLTB
Product ID：ASBLTB
E-Longtail MY26
System: Bosch CX-Variant
Battery: Bosch PT 625 Wh / Bosch PowerPack 725 Wh
Tire: 24 x 2.35”
Successfully Tested
System: Bosch CX-Variant
Battery: Bosch PT 625 Wh / Bosch PowerPack 725 Wh
Tire: 24 x 2.35”
Successfully Tested
ASBLTB
ASBLTB is a versatile cargo e-bike designed for power and stability. Equipped with the Bosch CX-Variant system, it delivers smooth and efficient assistance. Riders can choose between a Bosch Powertube 625Wh or a Bosch PowerPack 725Wh battery for extended range. With 24x2.35” tires, it ensures excellent balance and control, making it ideal for urban transport and heavy loads.
| System | Bosch BDU38YY CX-Variant ( Wide 75.6 mm ) | |
| Battery |
Bosch BES3 PT625 Vertical Bosch BBP35YY PowerPack 725 |
|
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 30.9 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 148 mm | |
| Tire | 24 x 2.35" | |
| Direct Mount | 180 mm | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note | Enviolo ( 148 mm OLD ) Gates Beltline: 50 mm Front Sprocket Teeth: 46T |
|

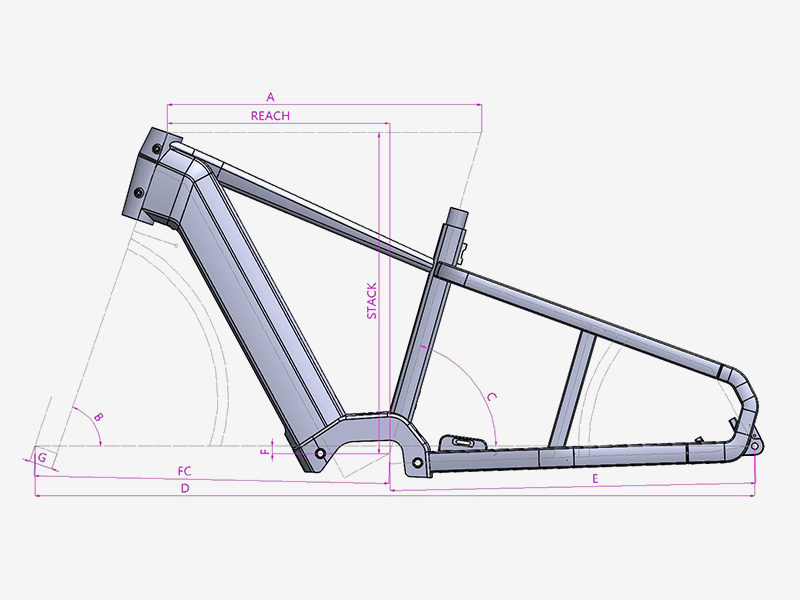

| Size | 480 | ||
| TT Length (A) | 594.8 | ||
| Reach | 420.56 | ||
| HT Angle (B) | 71 | ||
| ST Angle (C) | 74 | ||
| Stack | 607.64 | ||
| W.B (D) | 1362.86 | ||
| RC (E) | 691.5 | ||
| BB Drop (F) | 14 | ||
| Fork Offset (G) | 44 | ||
| HT Length (H) | 175 | ||
| FC | 671.65 |
