E-Wave / ASBWW
Product ID：ASBWW
E-Wave MY27
System: BOSCH Drive BDU38 CX
Battery: BOSCH Powertube 800Wh (Horizontal)
Tire: 50-622 (28 x 2.00)
NEW PRODUCT IN PROGRESS
System: BOSCH Drive BDU38 CX
Battery: BOSCH Powertube 800Wh (Horizontal)
Tire: 50-622 (28 x 2.00)
NEW PRODUCT IN PROGRESS

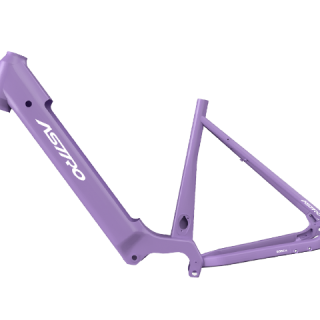

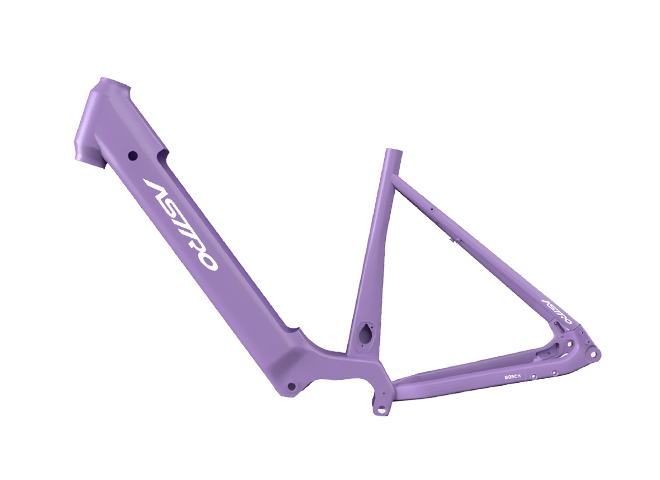

ASBWW
ASBWW is a high-performance e-bike engineered for demanding urban and trekking use. Powered by the Bosch Drive Unit BDU38 CX, it delivers strong, responsive assistance for confident riding across varied conditions. The Bosch Powertube 800Wh (horizontal) battery ensures extended range and reliable energy output, while 50-622 (28 × 2.00) tires provide a balanced combination of comfort, stability, and efficiency. Ideal for riders seeking power, endurance, and everyday versatility.
| System | BOSCH Drive BDU38 CX | |
| Battery | BOSCH Powertube 800Wh (Horizontal) | |
| Travel | 65 mm | |
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 142 mm SHIMANO | |
| Tire | 50-622 (28 x 2.00) | |
| Direct Mount | 160 mm | |
| Boost Crankset | MAX 38T by FSA | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
38T ( Chainline : 47.55 mm ) |
|

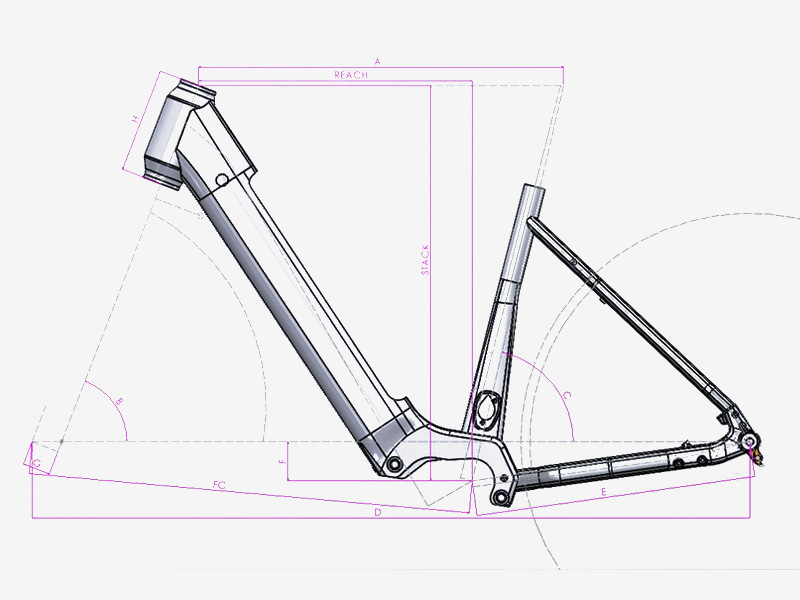

| Size | 500 | |||
| TT Length (A) | 605 | |||
| Reach | 453.3 | |||
| HT Angle (B) | 69 |
|||
| ST Angle (C) | 77 |
|||
| Stack | 657.2 | |||
| W.B (D) | 1190.3 | |||
| RC (E) | 465 |
|||
| BB Drop (F) | 65 |
|||
| Fork Offset (G) | 46 |
|||
| HT Length (H) | 175 |
|||
| FC | 732.8 | |||
