E-Hardtail / ASEBP
Product ID：ASEBP
E-Hardtail MY26
System: Bosch Drive CX (BDU38)
Battery: Bosch Powertube 800Wh
Tire: 27.5x2.6” / 29x2.4” (Diameter Max: 750mm)
NEW PRODUCT IN PROGRESS
System: Bosch Drive CX (BDU38)
Battery: Bosch Powertube 800Wh
Tire: 27.5x2.6” / 29x2.4” (Diameter Max: 750mm)
NEW PRODUCT IN PROGRESS
ASEBP

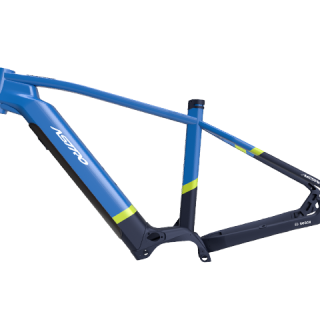

ASEBP is an electric mountain bike featuring either the Bosch Drive CX (BDU38), providing strong and reliable assistance. It is powered by a Bosch Powertube 800Wh battery, ensuring long-lasting power for your rides. The bike supports two tire sizes: 27.5x2.6" and 29x2.4", with a maximum diameter of 750mm, offering great flexibility and traction on different terrains. This e-bike is ideal for riders looking for a sturdy, performance-driven ride with electric support for enhanced outdoor experiences.
| Suspension System | Hardtail 27.5” or 29” Enduro Bosch System | |
| System | Bosch Drive CX ( BDU38 ) | |
| Battery | BOSCH Powertube 800Wh ( Horizontal ) | |
| Fork Travel | 120 mm | |
| Headset | 1.5” Taper ( 56mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 148 ( M12XP1.0 ) UDH | |
| Tire | 27.5 x 2.6” / 29 x 2.4” ( Diameter Max: 750mm ) | |
| Direct Mount | 180 mm | |
| Boost Crankset | 38T Max by FSA | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note | Chain Line: 53 mm Chain Guide: Mr.control-CH GN4 UPPER HP |
|
| Size | 400 | 440 | 480 | 520 | |
| TT Length (A) | 600 | 620 | 640 | 660 | |
| Reach | 434.6 | 451 | 467.4 | 487.4 | |
| HT Angle (B) | 68 | ||||
| ST Angle (C) | 75.5 | ||||
| Stack | 639.56 | 653.47 | 667.38 | ||
| W.B (D) | 1186.99 | 1209.02 | 1231.04 | 1251.04 | |
| RC (E) | 465 |
||||
| BB Drop (F) | 56 |
||||
| Fork Offset (G) | 51 |
||||
| HT Length (H) | 110 | 125 | 140 | ||
| FC | 727.54 | 749.5 | 771.46 | 791.41 | |
