E-Fully / ASIBE
Product ID：ASIBE
E-Fully MY24
System: Bosch SX-V2 Wide
Battery: Bosch CPT 400Wh
Tire: 29 x 23"
IN PROGRESS
System: Bosch SX-V2 Wide
Battery: Bosch CPT 400Wh
Tire: 29 x 23"
IN PROGRESS

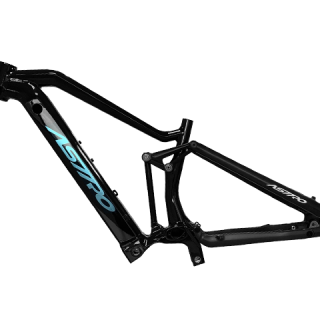

ASIBE
ASIBE is a durable electric mountain bike designed for adventure. It features the Bosch SX-V2 Wide system for smooth and powerful assistance on various trails. With a Bosch CPT 400Wh battery, it provides reliable power for longer rides. The 29 x 23" tires offer excellent traction and stability, making it perfect for tackling rugged terrains with ease. Ideal for outdoor enthusiasts seeking a reliable and thrilling ride.
| System | Bosch SX-V2 Wide | |
| Battery | Bosch BBP3240 CPT400 Horizontal Holder | |
| Travel | 150 mm | |
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm | |
| Rear Axle | Shimano 12 x 148 mm | |
| Tire | 29 x 2.3" | |
| Range Extender Compatible | Bosch BES3 PM250 Datenpaket | |
| Crankset | 44T Max ( Chainline 55 mm ) | |
| Material | 6061 | |
| Manufacture Base | Taiwan | |
| Size | 440 | 480 | 510 | 530 | 565 |
| TT Length (A) | 523 | 535 | 550 | 564 | 581 |
| Reach | 370.87 | 374.19 | 381.31 | 387.47 | 392.71 |
| HT Angle (B) | 69.75 | 70 | 70.25 | 71 | 71.25 |
| ST Angle (C) | 73.5 | 73 | 72.25 | 72.5 | 72 |
| Stack | 548.55 | 560.82 | 578.75 | 595.94 | 615.88 |
| W.B (D) | 1027.75 | 1033.11 | 1044.21 | 1048.68 | 1058.08 |
| RC (E) | 437 | ||||
| BB Drop (F) | 78 | ||||
| Fork Offset (G) | 50 | ||||
| HT Length (H) | 125 | 137 | 155 | 170 | 190 |
| FC | 602.83 | 608.15 | 619.16 | 623.59 | 632.92 |
