E-Wave / ASSEWU
Product ID:ASSEWU
E-Wave MY27
System: Shimano DU_EP801
Battery: Darfon Battery 531Wh / 600Wh
Tire: 50-622 (28 x 2.00)
NEW PRODUCT IN PROGRESS
System: Shimano DU_EP801
Battery: Darfon Battery 531Wh / 600Wh
Tire: 50-622 (28 x 2.00)
NEW PRODUCT IN PROGRESS
ASSEWU
ASSEWU is a versatile e-bike designed for efficient urban and trekking applications. Powered by the Shimano DU-EP801 system, it delivers smooth, high-performance pedal assistance with precise control. The Darfon 531Wh / 600Wh battery options provide flexible and reliable range for daily use, while 50-622 (28 × 2.00) tires ensure a balanced mix of comfort, stability, and rolling efficiency. Ideal for riders seeking performance, reliability, and everyday practicality.
| System | Shimano DU_EP801 | |
| Battery | Darfon Battery 531 Wh / 600 Wh | |
| Travel | 65 mm | |
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 142 mm Shimano | |
| Tire | 50 - 622 ( 28 x 2.00 ) | |
| Direct Mount | 160 mm | |
| Boost Crankset | Max 38T by FSA | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
38T ( Chainline : 47.55 mm ) |
|

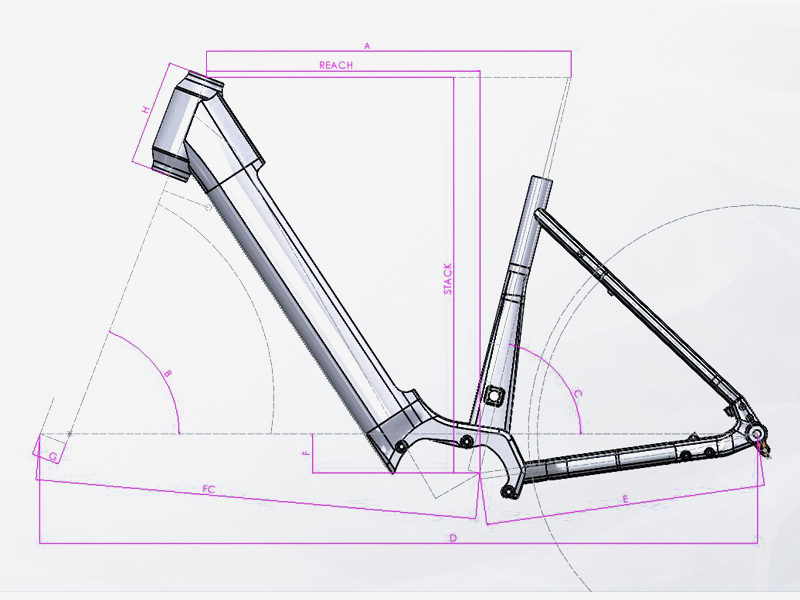

| Size | 500 | |||
| TT Length (A) | 605 | |||
| Reach | 453.3 | |||
| HT Angle (B) | 69 |
|||
| ST Angle (C) | 77 |
|||
| Stack | 657.2 | |||
| W.B (D) | 1190.3 | |||
| RC (E) | 465 |
|||
| BB Drop (F) | 65 |
|||
| Fork Offset (G) | 46 |
|||
| HT Length (H) | 175 |
|||
| FC | 732.8 | |||
