E-Wave / ASSEWV
Product ID：ASSEWV
E-Wave MY27
System: Shimano DU_EP610
Battery: Shimano BT_EN837/BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS
System: Shimano DU_EP610
Battery: Shimano BT_EN837/BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS
ASSEWV

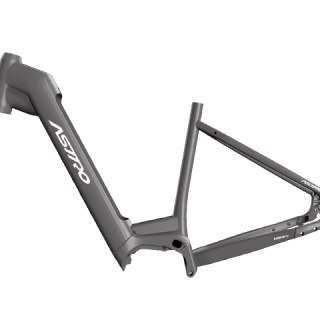

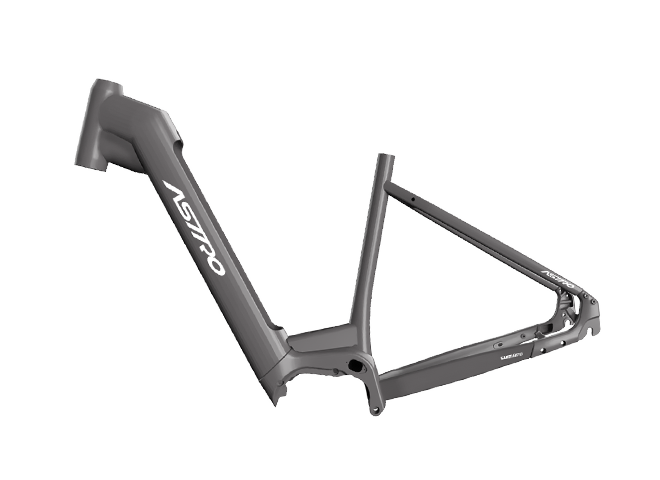

ASSEWV is a refined and reliable e-bike designed for urban mobility and daily commuting. Equipped with the Shimano DU-EP610 system, it delivers smooth, natural pedal assistance with consistent performance. The Shimano BT-EN837 / BT-EN838 battery options provide dependable range for everyday use, while Schwalbe Marathon E-Plus HS498 55-622 tires ensure high durability, puncture protection, and a stable, comfortable ride. Well suited for city commuting and long-distance urban travel.
| System | Shimano DU_EP610 | |
| Battery | Shimano BT_EN837/BT_EN838 | |
| Travel | 63 mm | |
| Headset | 1.5” Taper ( 44 mm / 56 mm ), Semi | |
| Seatpost | 30.9 mm | |
| Rear Axle | 10 x 135 mm | |
| Tire | Schwalbe Marathon E-plus HS498 55-622 | |
| Direct Mount | 180 mm | |
| Crankset | SM_CRE80_44T( single chainguard) | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
Motor cover : DU-EP610-A / DU-EP610-G Chain line : 50mm |
|

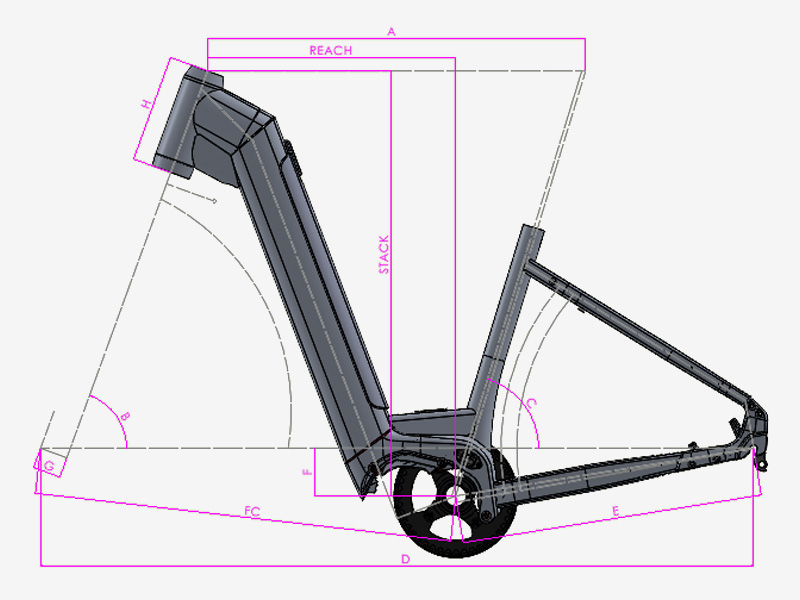

| Size | 440 | 480 | 520 | 560 |
| TT Length (A) | 595 | 600 | 610 | 615 |
| Reach | 390.51 | 394.07 | 402.63 | 406.2 |
| HT Angle (B) | 70 | 69.5 | ||
| ST Angle (C) | 73 | |||
| Stack | 668.87 | 673.57 | 678.27 | 682.97 |
| W.B (D) | 1122.52 | 1127.8 | 1138.07 | 1143.34 |
| RC (E) | 475 | |||
| BB Drop (F) | 75 | |||
| Fork Offset (G) | 44 | |||
| HT Length (H) | 170 | 175 | 180 | 185 |
| FC | 657.77 | 663.01 | 673.22 | 678.46 |
