E-Gent / ASSGH
Product ID：ASSGH
E-Gent MY27
System: Shimano DU_EP610
Battery: Shimano BT_EN837 / BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS
System: Shimano DU_EP610
Battery: Shimano BT_EN837 / BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS

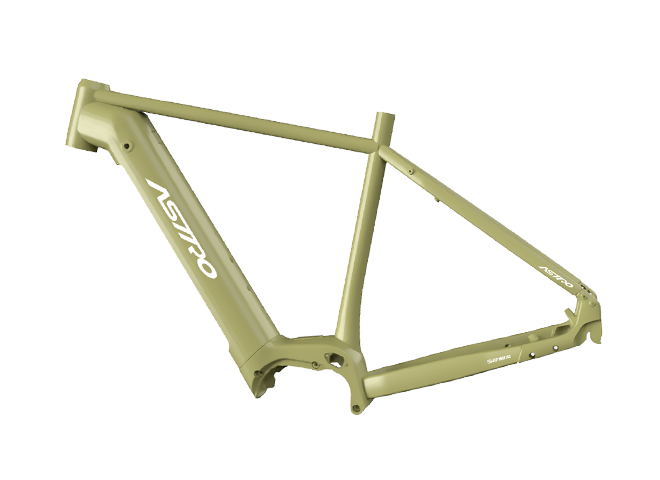

ASSGH
ASSGH is a refined e-bike designed for comfortable, dependable urban riding. Powered by the Shimano DU-EP610 system, it delivers smooth and natural pedal assistance suited for daily commuting. The Shimano BT-EN837 / BT-EN838 battery options provide reliable range for everyday use, while Schwalbe Marathon E-Plus HS498 55-622 tires offer excellent durability, puncture protection, and ride stability. An ideal choice for efficient city travel with a focus on comfort and reliability.
| System | Shimano DU_EP610 | |
| Battery | Shimano BT_EN837/BT_EN838 | |
| Travel | 63 mm | |
| Headset | 1.5” Taper ( 44 mm / 56 mm ), Semi | |
| Seatpost | 30.9 mm | |
| Rear Axle | 10 x 135 mm Shimano | |
| Tire | Schwalbe Marathon E-plus HS498 55-622 | |
| Direct Mount | 180 mm | |
| Crankset | SM_CRE80_44T (Single Chainguard) | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
Motor Cover: DU-EP610-A / DU-EP610-G Chain Line: 50mm |
|

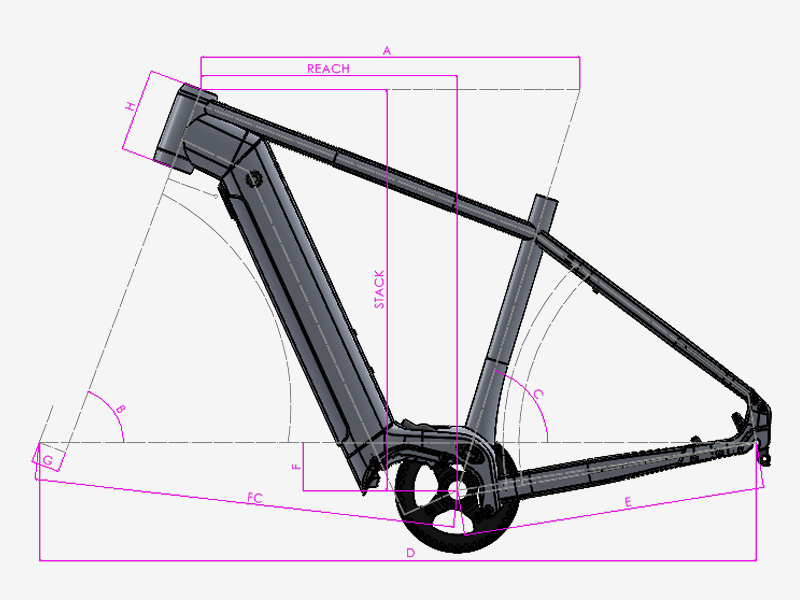

| Size | 480 | 520 | 560 | 600 |
| TT Length (A) | 595 | 608 | 615 | 625 |
| Reach | 402.67 | 414.24 | 419.8 | 428.37 |
| HT Angle (B) | 69.5 | |||
| ST Angle (C) | 77 | |||
| Stack | 629.09 | 633.77 | 638.45 | 643.14 |
| W.B (D) | 1125.85 | 1139.17 | 1146.49 | 1156.81 |
| RC (E) | 475 | |||
| BB Drop (F) | 75 | |||
| Fork Offset (G) | 44 | |||
| HT Length (H) | 130 | 135 | 140 | 145 |
| FC | 661.08 | 674.31 | 681.59 | 691.84 |
