E-Lady / ASSLJ
Product ID：ASSLJ
E-Lady MY27
System: Shimano DU_EP610
Battery: Shimano BT_EN837 / BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS
System: Shimano DU_EP610
Battery: Shimano BT_EN837 / BT_EN838
Tire: Schwalbe Marathon E-plus HS498 55-622
NEW PRODUCT IN PROGRESS

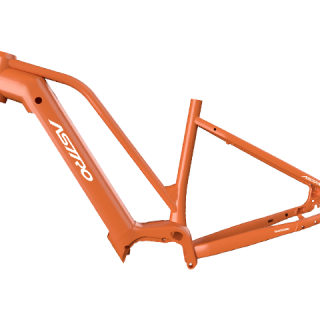

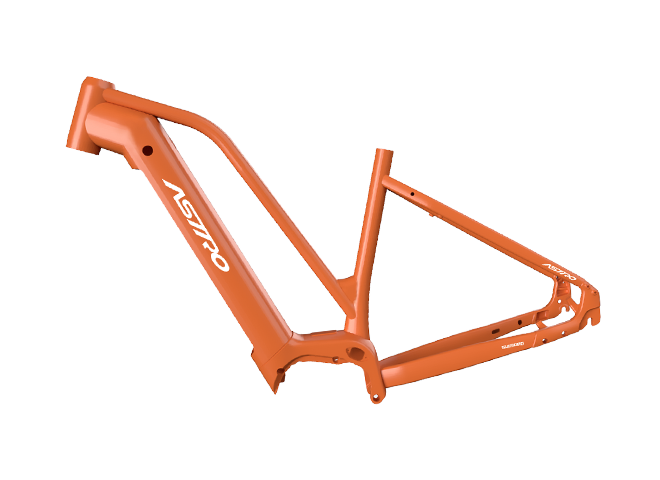

ASSLJ
ASSLJ is an elegant and reliable e-bike tailored for comfortable urban riding. Powered by the Shimano DU-EP610 system, it provides smooth and natural pedal assistance for everyday commuting. The Shimano BT-EN837 / BT-EN838 battery options ensure dependable range, while Schwalbe Marathon E-Plus HS498 55-622 tires deliver excellent durability, puncture protection, and stable ride quality. Well suited for daily city travel with a focus on comfort and confidence.
| System | Shimano DU_EP610 | |
| Battery | Shimano BT_EN837 / BT_EN838 | |
| Travel | 63 mm | |
| Headset | 1.5” Taper ( 44 mm / 56 mm ), Semi | |
| Seatpost | 30.9 mm | |
| Rear Axle | 10 x 135 mm | |
| Tire | Schwalbe Marathon E-plus HS498 55-622 | |
| Direct Mount | 180 mm | |
| Crankset | SM_CRE80_44T (Single Chainguard) | |
| Material | 6061 | |
| Manufacture Base | Vietnam | |
| Note |
Motor Cover: DU-EP610-A / DU-EP610-G Chain Line: 50 mm |
|

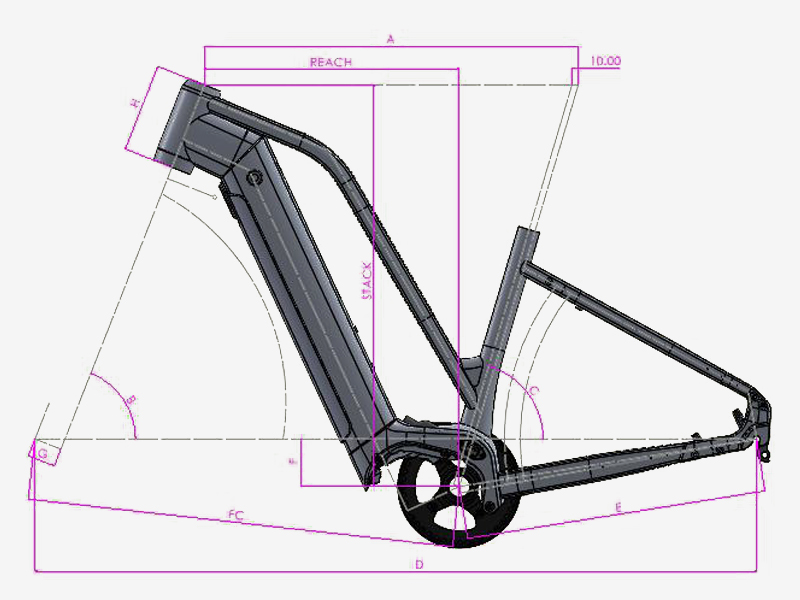

| Size | 420 | 460 | 510 | 560 |
| TT Length (A) | 590 | 595 | 605 | 615 |
| Reach | 402.24 | 407.24 | 414.48 | 421.73 |
| HT Angle (B) | 68.5 | |||
| ST Angle (C) | 73.5 | |||
| Stack | 633.87 | 643.18 | 652.48 | |
| W.B (D) | 1138.72 | 1143.72 | 1154.63 | 1165.53 |
| RC (E) | 475 | |||
| BB Drop (F) | 75 | |||
| Fork Offset (G) | 44 | |||
| HT Length (H) | 140 | 150 | 160 | |
| FC | 673.86 | 678.83 | 689.67 | 700.52 |
