E-Fully / ASB1A9A
商品編號：ASB1A9A
E-Fully MY25
馬達系統: Bosch CX ( BDU38 )
電池: Bosch Powertube 800Wh
輪胎: 27.5x2.6” / 29x2.4” ( Diameter Max: 750mm )
材質: FT: Carbon / RT: Alloy 6061
新產品研發中
馬達系統: Bosch CX ( BDU38 )
電池: Bosch Powertube 800Wh
輪胎: 27.5x2.6” / 29x2.4” ( Diameter Max: 750mm )
材質: FT: Carbon / RT: Alloy 6061
新產品研發中

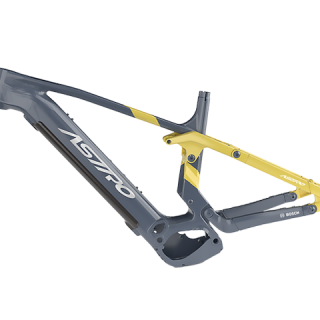

ASB1A9A
ASB1A9A 採用 Bosch CX (BDU38) 系統，提供順暢且靈敏的動力輔助，無論任何地形皆能輕鬆應對。配備 Bosch Powertube 800Wh 電池，延長續航時間，讓您騎行更遠、更安心。此車兼容兩種輪胎尺寸：27.5 x 2.6 吋及 29 x 2.4 吋，最大直徑可達 750 毫米，帶來多樣化的適用性與最佳抓地力。前三角採用碳纖維材質，後三角則以 6061 鋁合金製成，完美平衡強度、重量與耐用性，是追求冒險與性能騎乘者的理想選擇。
| Suspension System | 27.5+ / 29 Enduro Bosch system | |
| System | Bosch Drive BDU38 CX ( Variant Wide ) | |
| Battery | BOSCH Powertube 800Wh ( Horizontal ) | |
| Fork / Wheel Travel | 6.3” ( 160mm ) | |
| Shock Spec | 205 x 60 mm Trunnion Shock Upper = 24 x ID8 mm / Lower = 54 mm |
|
| Headset | 1.5” Taper ( 56mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm / Seat Tube OD: ∅35 | |
| Rear Axle | 12 x 148 ( M12 x P1.5 ) | |
| Tire | 27.5 x 2.8” / 29 x 2.6” ( Diameter Max: 726 mm ) | |
| Direct Mount | 180 mm | |
| Boost Crankset | 38T Max by FSA | |
| Material | FT: Carbon / RT: Alloy 6061 | |
| Manufacture Base | Taiwan | |
| Note | Leverage Ratio: 1 : 2.8 Chain Line: 53 mm Hanger: SRAM UDH |
|
| Size | 420 (SM) | 440 (MD) | 460 (LG) | 480 (XL) | |
| TT Length (A) | 595.99 | 620.99 | 647.19 | 678.4 | |
| Reach | 427 | 452 | 477 | 507 | |
| HT Angle (B) | 64 | ||||
| ST Angle (C) | 72.5 | ||||
| Stack | 630.68 | 635.17 | 639.67 | ||
| W.B (D) | 1229.05 | 1254.05 | 1281.24 | 1313.43 | |
| RC (E) | 460 |
||||
| BB Drop (F) | 28 |
||||
| Fork Offset (G) | 44 |
||||
| HT Length (H) | 110 | 115 | 120 | ||
| FC | 770.41 | 795.39 | 822.57 | 854.74 | |
