E-Fully / ASCSEB
商品編號：ASCSEB
E-Fully MY24
熱塑性碳纖維
馬達系統: Shimano DU-EP8
電池: Simplo TPS-002 720 Wh
輪胎: 29 X 2.6” (Diameter Max: 759mm)
通過測試
・ISO 4210 (SM)
熱塑性碳纖維
馬達系統: Shimano DU-EP8
電池: Simplo TPS-002 720 Wh
輪胎: 29 X 2.6” (Diameter Max: 759mm)
通過測試
・ISO 4210 (SM)

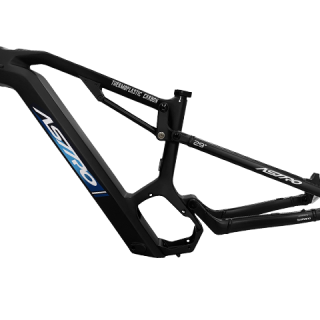

ASCSEB
ASCSEB 是一款專為極限越野設計的高性能電動登山車，採用熱塑性碳纖維車架，兼具輕量與堅固特性。搭載 Shimano DU-EP8 系統，帶來順暢且高效的動力輸出，無論上坡或顛簸路段皆能輕鬆征服。車輛配備 Simplo TPS-002 720Wh 電池，提供強勁且持久的續航力，支援長距離騎乘需求。29 x 2.6 吋輪胎則提供優異的抓地力與穩定性，面對崎嶇地形依然操控自如。非常適合追求耐用性、舒適性與強大電力的騎乘者，是探索山野的理想之選。
| Suspension System | Horst Link 29 Enduro 160 mm / 160 mm Shimano System | |
| System | Shimano DU-EP8 | |
| Battery | Simplo TPS-002 | |
| Wheel / Fork Travel | 6.3” ( 160 mm ) | |
| Shock Spec | Fox dpx2 - 205 x 65 mm Trunnion Shock Upper = 54 mm / Lower = 22 x ID8 mm |
|
| Headset | 1.5” Taper ( 56 mm / 56 mm ), Semi | |
| Seatpost | 31.6 mm | |
| Rear Axle | 12 x 148 SRAM x 175 L (UDH) | |
| Tire | 29 X 2.6” ( Diameter Max: 759 mm ) | |
| Direct Mount | 180 mm | |
| Boost Crankset | 38T Max | |
| Material | FT: Carbon / RT: Alloy 6061 | |
| Manufacture Base | Taiwan | |
| Note | Leverage Ratio: 1 : 2.46 Chain Guide: MR Control, CH-MINI UPPER for Chain Line 53 mm Hanger: SRAM UDH Speed Sensor: SM-DUE11 |
|
| Size | 400 (SM) | 440 (MD) | 480 (LG) | 520 (XL) | |
| TT Length (A) | 603.37 | 623.37 | 644.67 | 665.97 | |
| Reach | 425 | 445 | 465 | 485 | |
| HT Angle (B) | 65 | ||||
| ST Angle (C) | 74 | ||||
| Stack | 622.04 | 626.57 | 631.1 | ||
| W.B (D) | 1209.86 | 1229.86 | 1251.97 | 1274.09 | |
| RC (E) | 455 | ||||
| BB Drop (F) | 18 | ||||
| Fork Offset (G) | 44 | ||||
| HT Length (H) | 110 | 115 | 120 | ||
| FC | 755.43 | 775.43 | 797.53 | 819.64 | |
