Gravel / AS1GA
Product ID：AS1GA
Gravel MY26
System: Shimano Flat Mount Disc Brake
Derailleur: Shimano GRX, RD-RX810
Tire: 622 x 50C
Material: Carbon
NEW PRODUCT IN PROGRESS
System: Shimano Flat Mount Disc Brake
Derailleur: Shimano GRX, RD-RX810
Tire: 622 x 50C
Material: Carbon
NEW PRODUCT IN PROGRESS

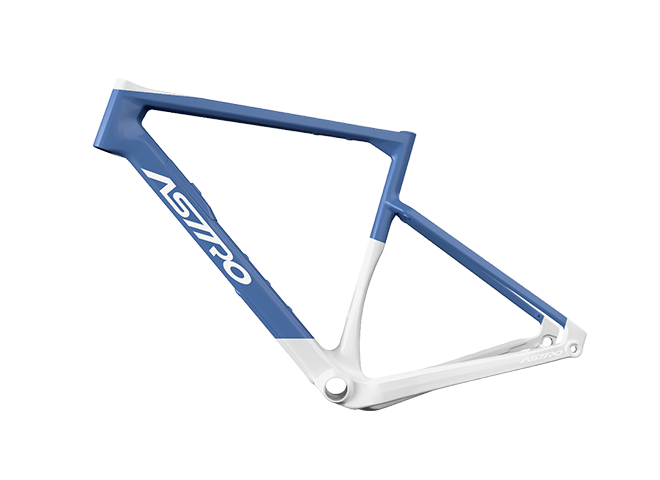

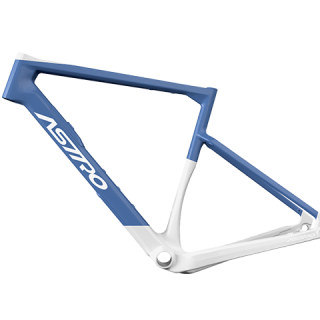

AS1GA
AS1GA is a lightweight gravel frame developed for versatility across mixed terrain and endurance riding. Designed around the Shimano Flat Mount disc brake system, it offers reliable braking control and clean integration. Equipped with Shimano GRX RD-RX810, it delivers precise shifting performance tailored for gravel conditions. The 622 × 50C tire clearance enhances comfort and traction on varied surfaces, while a frame weight of 1250 g (size SM) supports agile handling and efficient climbing. Ideal for riders seeking speed, stability, and all-road capability.
| System | Road /Shimano Flat Mount Disc Brake | |
| Headset | FSA NO.55R 1.5" /ACR/STD | |
| Seatpost | 27.2 mm | |
| Derailleur | Shimano GRX, RD-RX810, Brazed On FD-RX810F | |
| Bottom Bracket | Pressfit Road 86.5 | |
| Rear Axle | 12x142 mm (SRAM UDH / Shimano’s new hanger ) | |
| Crankset | Shimano GRX, FC-RX820-2, 48-31T / Sram Red XPLR,, 42T | |
| Tire | 622 x 50C | |
| Material | Carbon | |
| Weight | 1250g (For SM) | |
| Fork | AS1GA-FK | |
| Note | Vietnam | |

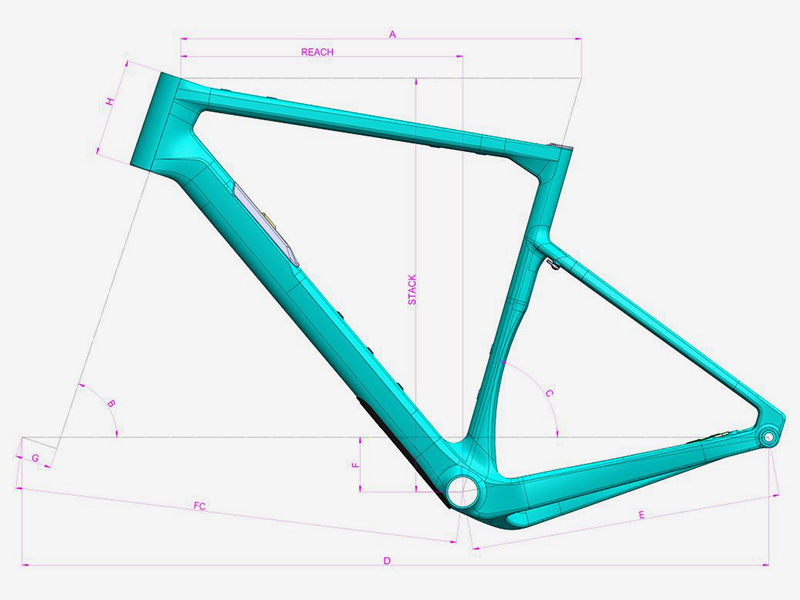

| Size | XS | SM | MD | LG | XL |
| TT Length (A) | 530 | 550 | 567 | 594 | 615 |
| Reach | 378 | 387 | 400 | 415 | 431 |
| HT Angle (B) | 71 | 71.5 | 71.5 | 71.5 | 72 |
| ST Angle (C) | 74.5 | 74 | 74 | 74 | 73.5 |
| Stack | 547 | 568 | 592 | 617 | 641 |
| W.B (D) | 1013.8 | 1025 | 1046 | 1069.5 | 1087.9 |
| RC (E) | 427 | ||||
| BB Drop (F) | 75 | ||||
| Fork Offset (G) | 50 | ||||
| HT Length (H) | 115 | 125 | 160 | 187 | 210 |
| FC | 598.18 | 609.32 | 630.07 | 653.5 | 671.75 |
